Description

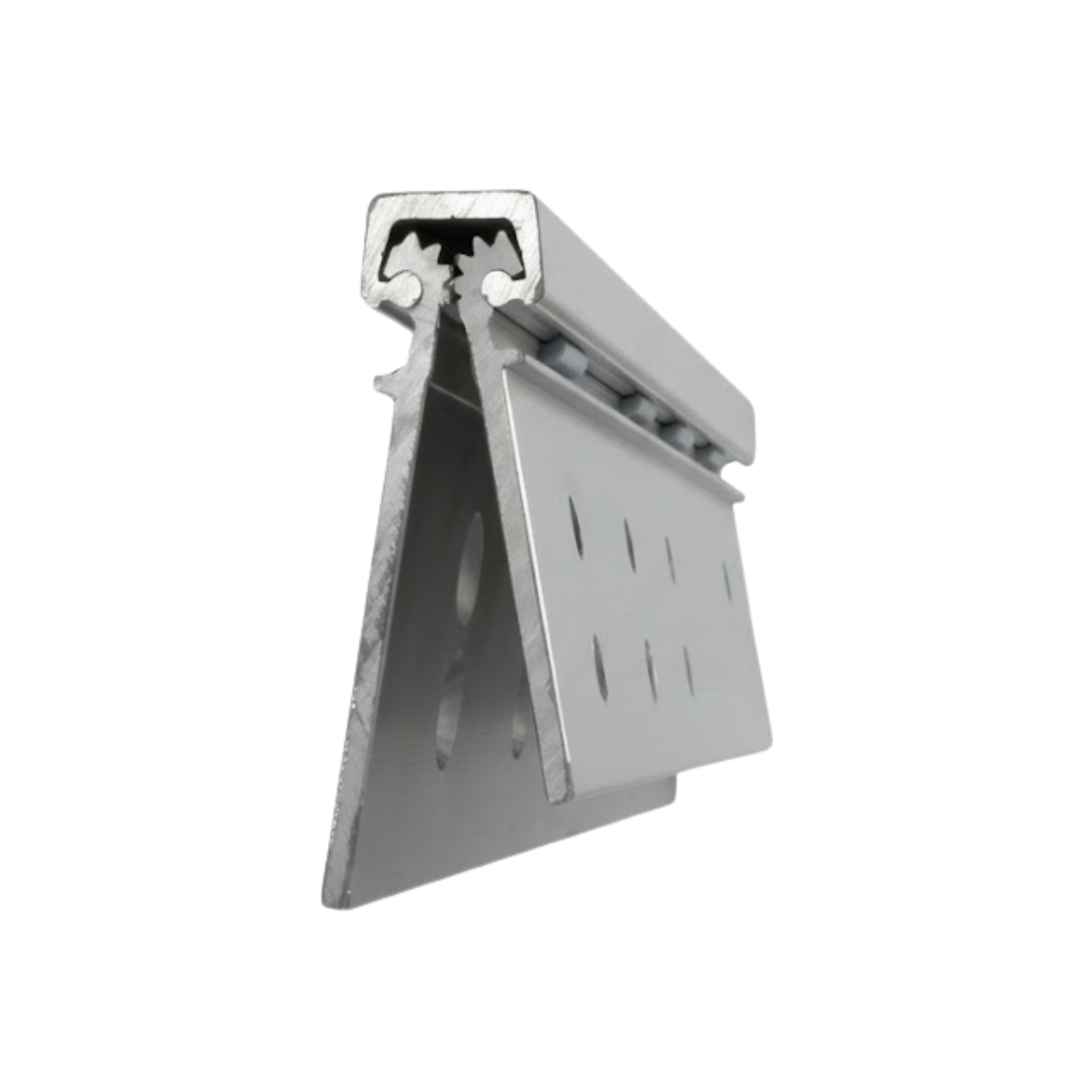

geared hinge ABH A111HD Full Mortise Continuous Gear HingeBHMA Grade 1 Full Concealed, Heavy Duty 1 8" Door Inset 48" door width maximum 450 lbs. door weight maximum Average weight per unit = 11 lbs "LL" model for doors up to 1,000 lbs (lead lined staggered hole pattern) Fasteners: 12 24 X 3 4" undercut self drilling, thread forming tek machine screws Standard Lengths: 79", 83", 85", 95" and 120" + Custom Sizes Available Fire Rating Approved for use on metal swinging type fire doors rated up to and including
- BHMA Grade 1
- Full Concealed, Heavy Duty
- 1/8" Door Inset
- 48" door width maximum
- 450 lbs. door weight maximum
- Average weight per unit = 11 lbs
- "LL" model for doors up to 1,000 lbs (lead-lined staggered hole pattern)
-
Fasteners:
12-24 X 3/4" undercut self drilling, thread forming tek machine screws
-
Standard Lengths:
79", 83", 85", 95" and 120" + Custom Sizes Available
-
Fire Rating
- Approved for use on metal swinging type fire doors rated up to and including 90 minutes (Specifiy "FR" option for 3 hour rating)
- Approved for use on wood swinging type fire doors rated up to and including 60 minutes (Specifiy "FR" option for 90 minute rating)
-
Reinforcement:
- Door Side: Not required for door weight up to 200 lbs. ABH recommends a minimum 12 gauge plate/channel for heavier doors.
- Frame Side: Not required for door weight up to 200 lbs. For doors more than 200 lbs., a 16 gauge channel is recommended.
Cut Sheets
Templates
- A111HD/A111LL Aluminum Continuous Gear Hinges Full Mortise
- A111HD "AHT" Advanced Hospital Tip
- A111HD-EA Option, Easy Access Concealed Electrification
- A111HD-EA & R, Electrical Modification With Removable Option
- A111HD "EM" Option, Concealed Electrical Magnet Monitoring Switch
- A111HD "EA" Option Easy Access Concealed Electrification With "EM" Option Full Concealed Aluminum Geared Hinge
- Powder Coat Masking for Full Concealed Aluminum Continuous Geared Hinges
- Fire Rated Studs for Full Concealed Aluminum Geared Hinge
- Full Concealed Installation Instructions
- Auburn University - Spec
Tech Memos
Cross Reference Charts
